Race haus Intake system 034Motorsport Carbon Fibre Cold Air Intake System - Audi TT RS (8J) and RS3 (8P)
Race haus Intake system 034Motorsport Carbon Fibre Cold Air Intake System - Audi TT RS (8J) and RS3 (8P)
Race haus Intake system 034Motorsport Carbon Fibre Cold Air Intake System - Audi TT RS (8J) and RS3 (8P)
Sku:N/A

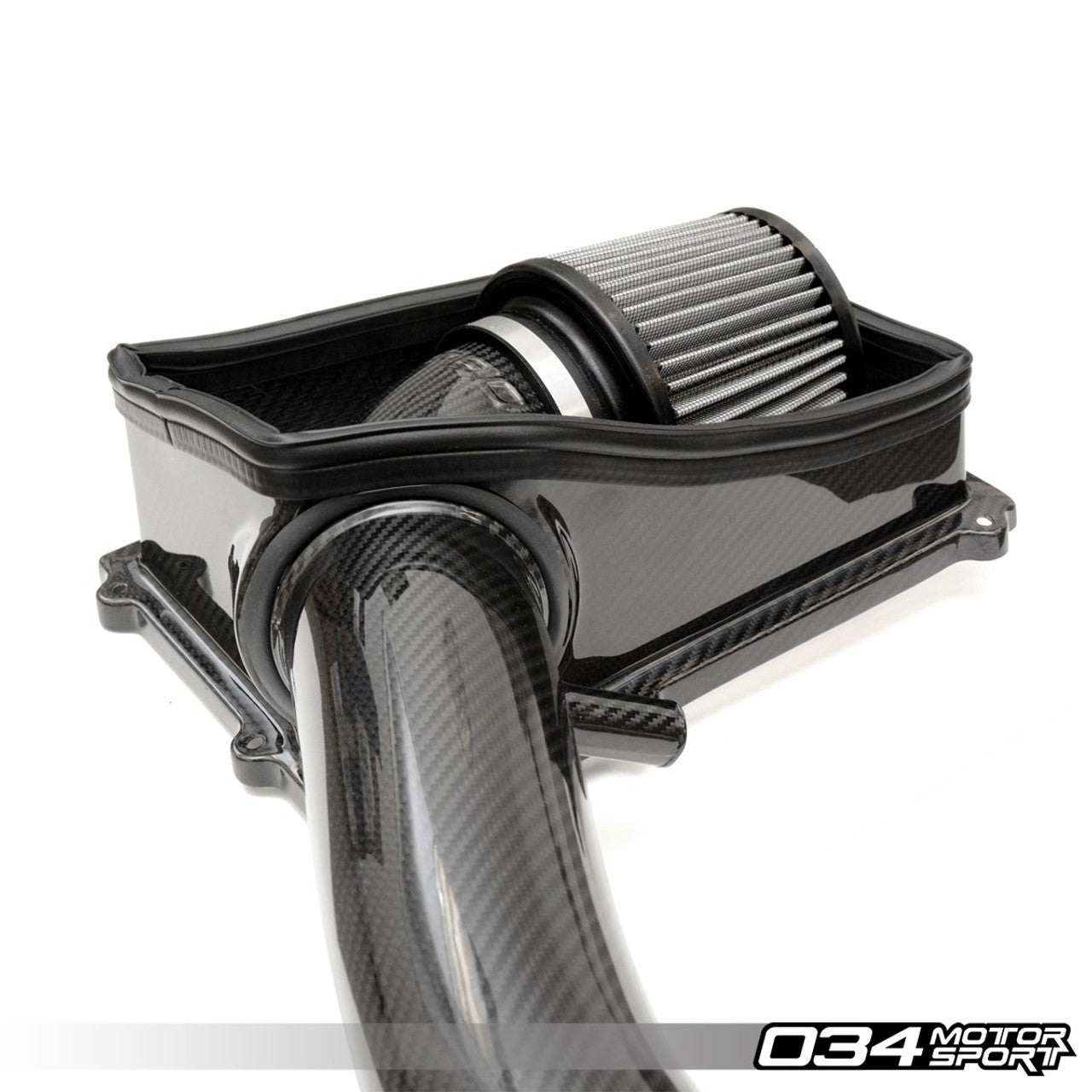

034Motorsport Carbon Fibre Cold Air Intake System - Audi TT RS (8J) and RS3 (8P)

£870.77
£1,024.44
Tax included
Sale
-15%

DESCRIPTION

Availability

Shipping & Warranty

034Motorsport is pleased to present our Carbon Fiber Audi TT RS Cold Air Intake System for the 2.5 TFSI! This intake offers horsepower and torque gains throughout the powerband, with peak gains of up to 16 crank horsepower and 13 ft-lbs of torque on stock turbo tunes, and over 35 crank horsepower and 24 ft-lbs with an upgraded turbocharger.

034Motorsport's engineers spent extensive effort to develop a complete cold air intake solution for the TT RS that yields horsepower and torque gains over the well-designed factory airbox, ultimately resulting in this beautifully-manufactured Carbon Fiber Cold Air Intake System.

Features:

  • Developed In-House by 034Motorsport's Engineering Team
  • High-Quality Carbon Fiber Construction
  • OEM+ Fit & Finish Matches Factory Carbon Fiber Engine Trim
  • Dyno-Proven Horsepower & Torque Gains
  • Improved Engine & Induction Sounds
  • Increased Throttle Response
  • Large-Diameter CFD-Optimized Air Intake Tube
  • Fiberglass-Backed Heat Shield
  • Improved Airflow from Factory Airbox & Intake Tube
  • High Performance Pleated Cotton Air Filter

034Motorsport is pleased to present our Carbon Fiber Cold Air Intake System for the 2.5 TFSI engine found in the 8J Audi TTRS!

034Motorsport's engineers spent extensive effort to develop a complete cold air intake solution for the TT RS that yields horsepower and torque gains over the well-designed factory airbox. During the development process, many iterations were designed, prototyped, and tested, which resulted in this beautifully-manufactured Carbon Fiber Cold Air Intake System.

Maximising airflow

034Motorsport Audi TTRS 2.5 TFSI Air Intake Flow Analysis

034Motorsport engineers first created a CFD-optimized carbon fiber intake tube, which is a direct, high-performance replacement for the plastic factory accordion hose. Using CAD software and 3D scanning technology, 034Motorsport was able to maximise the cross-sectional area of the intake tube while being mindful of space constraints, including the factory high-pressure fuel pump and firewall.

The resulting part is a functional work of art - maximising performance given the factory space constraints and featuring smooth transitions that ensure optimal airflow to the turbo inlet.

Minimising intake air temperature

To ensure that the 034Motorsport Cold Air Intake System draws in cool, dense air, the system includes a carbon fiber heat shield to replace the upper airbox. Bolting to the factory lower airbox, this heat shield allows the high-flow conical filter to breathe cold air from the factory inlet duct before the radiator. Both the carbon fiber heat shield and carbon fiber intake tube feature a fiberglass backing layer to aid in isolating cold, dense intake air from the heat of the engine bay.

Performance Air filter

The 034Motorsport Carbon Fiber Cold Air Intake system houses a high-flow conical air filter with double-layer pleated cotton filtration medium. This air filter design offers increased flow through an enlarged filtration surface, while ensuring superior filtration.

OEM+ FIT & FINISH

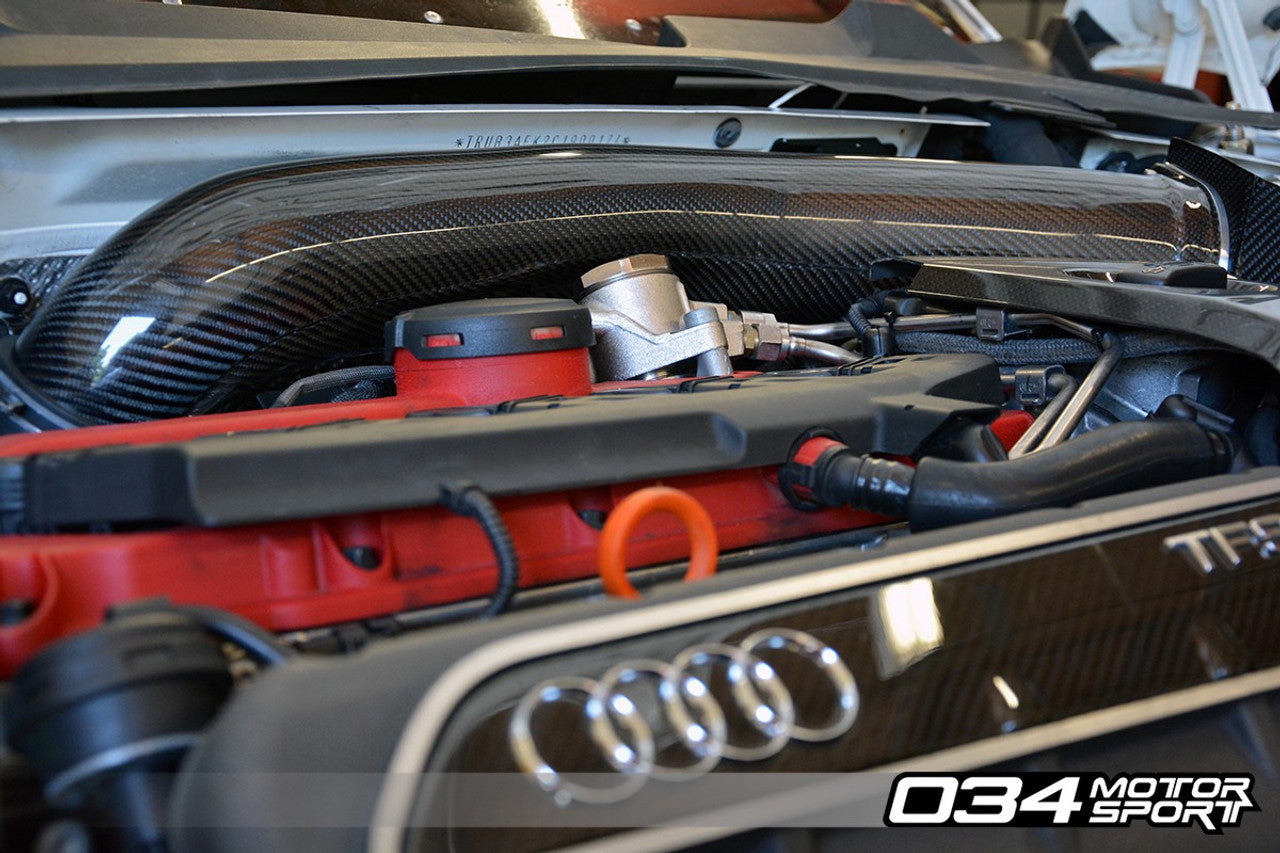

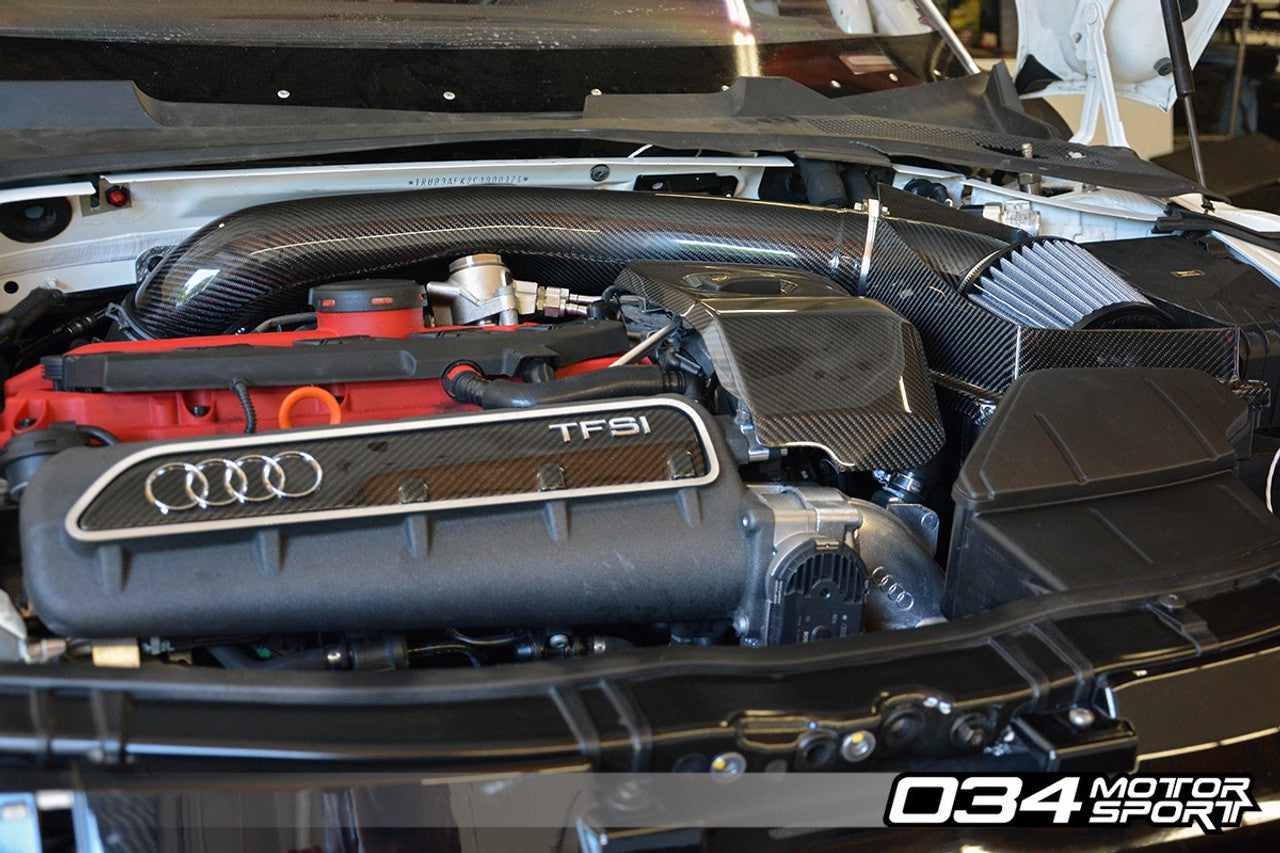

034Motorsport carefully selected thecarbon fiber weave on the intake tube and upper airbox heat shield to match the factory carbon fiber engine trim found in the Audi TT RS's 2.5 TFSI engine bay. The 034Motorsport Audi TT RS Cold Air Intake System was designed to fit like a factory part, and mates directly to the turbo inlet pipe and factory lower airbox to provide an OEM+ look.

DYNO-VERIFIED WHEEL HORSEPOWER & TORQUE GAINS

034Motorsport's engineering and development efforts were validated on multiple vehicles using our Mustang AWD Dynamometer to ensure that the 034Motorsport Audi TT RS Cold Air Intake System provided substantial increases in horsepower and torque on both stock turbo vehicles and ones with upgraded turbo kits alike.

Specification

Peak Wheel Horsepower & Torque with Stage 2:

  • Stock Intake:377 Wheel Horsepower / 421 Wheel Foot-Pounds of Torque
  • 034 Carbon Fiber Intake:390 Wheel Horsepower / 429 Wheel Foot-Pounds of Torque

Peak Wheel Horsepower & Torque with Stage 3:

  • Stock Intake:460 Wheel Horsepower / 424 Wheel Foot-Pounds of Torque
  • 034 Carbon Fiber Intake:491Wheel Horsepower / 443 Wheel Foot-Pounds of Torque

    In the box:

    • 034Motorsport Carbon Fiber Audi TT RS Air Intake Tube
    • 034Motorsport Carbon Fiber Audi TT RS Upper Airbox Heat Shield
    • 034Motorsport Double-Layer Pleated Air Filter
    • Installation Hardware

    Compatible Models:

    • Audi TTRS 2.5 TFSI (8J)
    • Audi RS3 (8P) requires removal of under bonnet sound deadening
    Installation Instructions:
    • Web | PDF
